List Layout - Selected

Dialog selections are discussed below the image. To navigate to an item, select it in the List Layout - Selected image. If NOT selecting any item and wanting to return to the prior page: swipe right-to-left; use the browser’s ‘back’ arrow; or use the Wiki’s Backlink icon on the right sidebar (mobile: drop-down dialog at the top of the page).

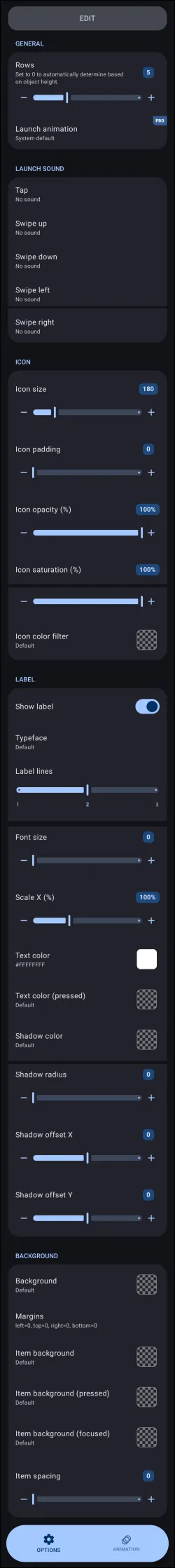

List Layout - Selected dialog. Make selection above.

[discussion of above selections]

• Defines the number of vertical items or rows displayed. Entering 0 dynamically calculates the visible row capacity based on the container object height; setting a fixed value forces that specific number of rows.

• Selects the visual transition effect executed when launching an application or shortcut from the list. These animations can be selected for any defined action (tap, swipe up/down, and swipe left/right).

• Assigns an audio feedback sound effect played upon item action. While the action can be any of the five (tap, swipe up/down, or swipe right/left), the Launcher's Resource Sound library opens to select user-deposited sounds.

• Icon size - Sets the scale and dimensional display size of item application icons, values ranging from 40 to 860.

• Icon padding - Adjusts internal spacing surrounding the icon within its cell boundary, values ranging from 0 to 215.

• Icon opacity (%) - Controls the transparency level of the displayed icons from completely invisible (0%) to fully opaque (100%).

• Icon saturation (%) - Adjusts color intensity of the icons from monochrome grayscale (0%) to full standard saturation (100%).

• Icon color filter - Applies a color overlay, tint, or color blending filter across the list icons. Color can either be static (selected from the Launcher's Color Picker utility), or dynamic (will be effective if the user has activated the Launcher's Dynamic Color scheme located at Edit mode > Launcher options > UI & Animation > User interface > Dynamic color scheme).

• Toggles the visibility of textual item titles (on or off).

• Opens the Launcher's font selection resource to choose system or custom font families for item labels. The Launcher initially includes a basic set of fonts. Users can add to that set as explained in Section on Typefaces.

• Label lines - Selects the maximum allowable lines of text (1, 2, or 3) permitted for multi-line item titles before truncation occurs.
• Font size - Specifies the text size of the item label. Setting the value to 0 applies Launcher default scaling, but can be expanded to 115.
• Scale X (%) - Adjusts the horizontal aspect ratio and character width scaling of the label text. This defaults at 100%, with a range of 50% to 200%.

• Selects the font color for item labels in their normal, unpressed state.

• Selects the font color displayed while an item is actively tapped or held.

• Sets the color of the text drop shadow behind item labels.

• Shadow radius - Controls the blur intensity and spread of the label drop shadow. For a more complete explanation of radius, see this technical discussion.

• Shadow offset X - Adjusts the horizontal placement shift of the text drop shadow.

• Shadow offset Y - Adjusts the vertical placement shift of the text drop shadow.

• Offers options to fill the container's background with a static or dynamic color, image, icon pack, shape, or dynamic image.

• Opens the margin adjustment dialog to configure external outer spacing for the top, bottom, left, and right sides of the container.

• Assigns an individual background graphic, shape, or color to each list item cell.

• Assigns an alternate background graphic or color displayed when a specific cell is tapped or held.

• Assigns an alternate background graphic or highlight color shown when an item is selected or focused via hardware keys or controllers.

• Sets the vertical pixel separation distance between adjacent item rows in the list from the default 0 to the maximum 288.

• Navigates to the animation settings tab to configure entry, exit, scroll, and transition animations for the layout object.
